Reference: TBS2903
TBS2903 MOI Plus is a DVB-S/S2 to IP gateway for IPTV headend stations. It provides 1/2 satellite RF inputs. Each satellite RF input supports to capture all free channels from on satellite transponder. Next to its own streaming system
Security policy
We are committed to protecting our users’ data and privacy. We implement strong security measures
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

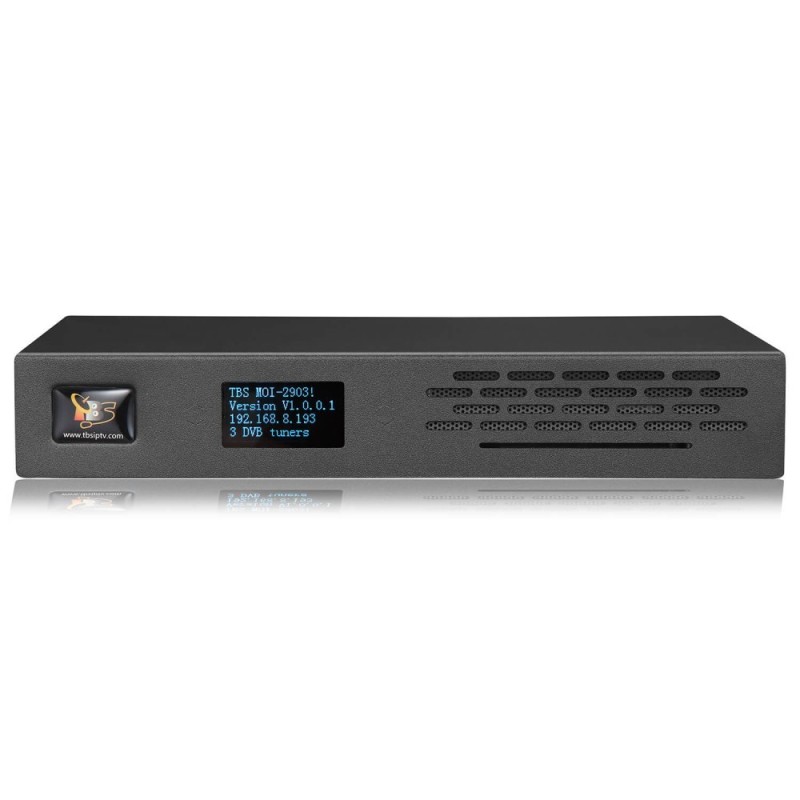

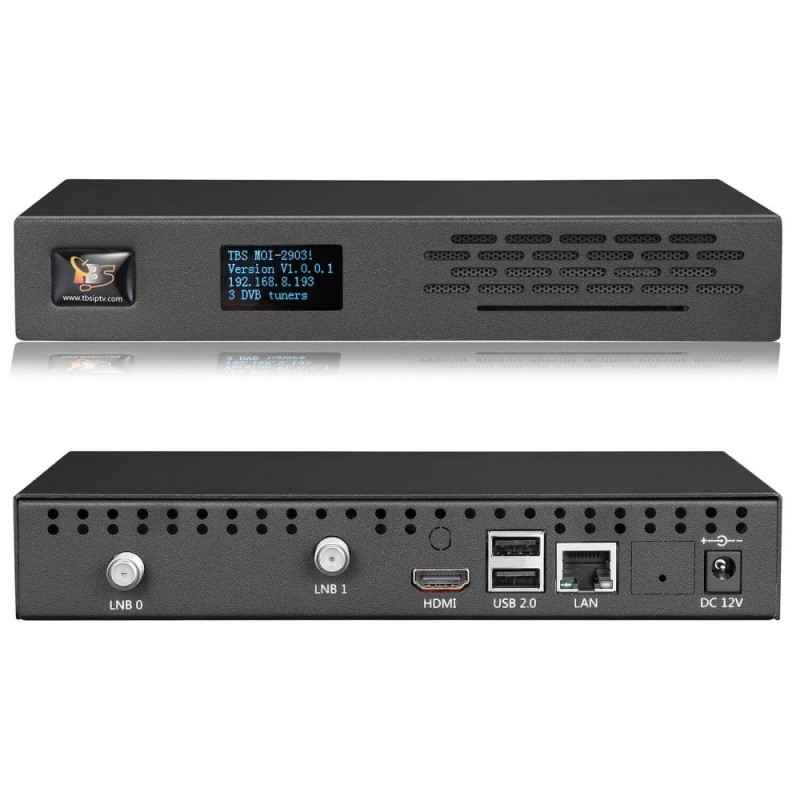

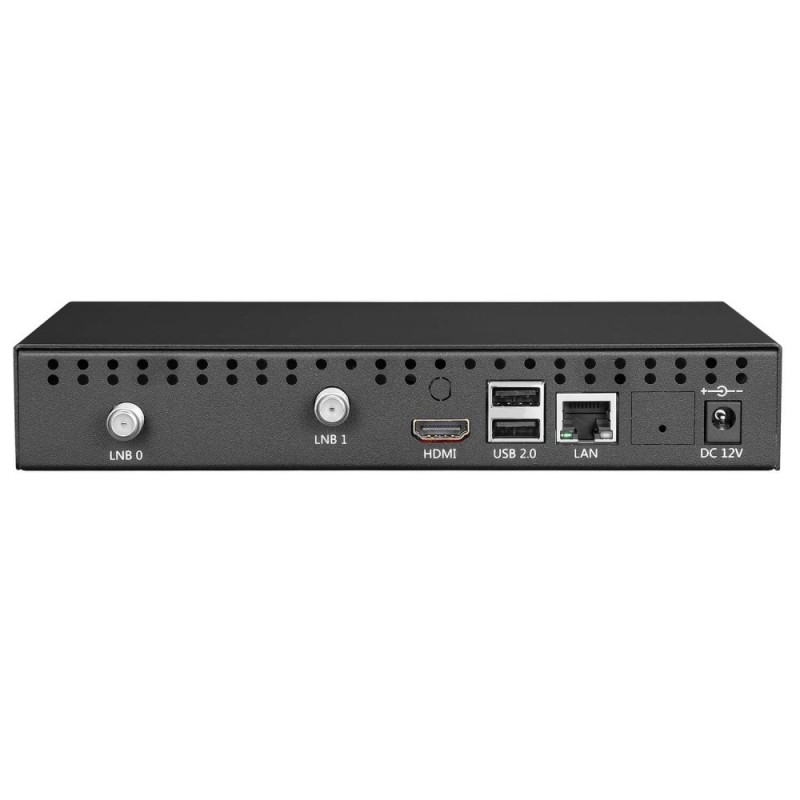

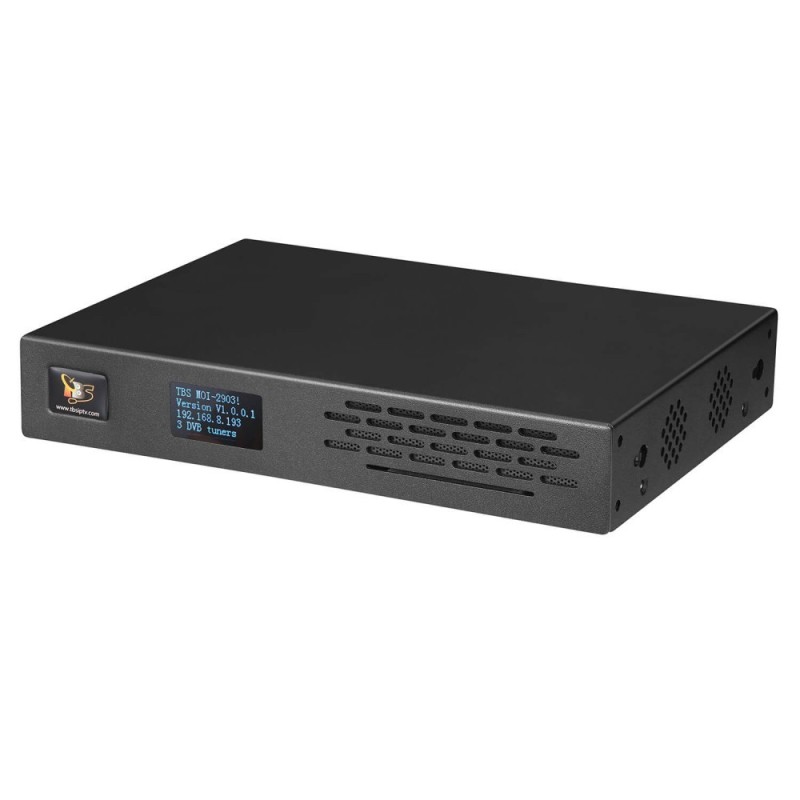

TBS2903 MOI Plus is a DVB-S/S2 to IP gateway for IPTV headend stations. It provides 1/2 satellite RF inputs. Each satellite RF input supports to capture all free channels from on satellite transponder. Next to its own streaming system, MOI Plus is also embedded many open-source applications to output different protocol IP streams, like UDP, RTP, HLS, HTTP, etc., which provides many possibilities to IPTV system integrators or TV service operators.
The DVB Conditional Access Systems (CAS) slot is an optional hardware configuration in TBS2903 MOI Plus. If you require this interface, please contact us before placing order.
For standard sample testing, TBS2903 MOI Plus is equipped with 2G DDR4, 8G flash and a 1Gb network port. But if customers have other hardware requirements, we accept customization producing order.
Data sheet
TBS2903 MOI Plus is a DVB-S/S2 to IP gateway for IPTV headend stations. It provides 1/2 satellite RF inputs. Each satellite RF input supports to capture all free channels from on satellite transponder. Next to its own streaming system
MOI Pro MAX is a new professional IPTV streaming server powered by Intel Quad Core solution. It can be loaded with 4pcs DVB TV Tuner PCIe cards to receive live TV signal and stream the channels through Ethernet. With pre-installed Kylone streaming software, MOI Pro MAX provides more possibilities to IPTV system integrators and TV service operators.
Looking for a reliable way to break the barriers between broadcast standards, convert DVB-S to DVB-C, HDMI to DVB-T, or other similar trans-modulation needs?
At Turbosight, we provide flexible trans-modulation solutions based on our wide range of professional-grade hardware. Whether it's DVB-S2X to DVB-T, DVB-C to DVB-T, or DVB-S2X to ATSC, our high-density gateway handles it all. Seamlessly receive, descramble, and re-modulate signals for any network architecture worldwide.
TBS6916 is a DVB-S2X/S2/S hexadeca tuner card, it not only supports to receive SD/HD digital TV channels from 16 different satellite transponders simultaneously, but also supports CCM, ACM, VCM and Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6916 can receive more channels than the usual dual or quad TV tuner, thus it is high-minded for broadcasting system.
TBS8600 is a professional IP-to-IP Protocol Converter designed for seamless video stream management. It acts as a specialized "bridge" in your network, receiving IP streams in various formats and converting them into the specific protocols required by your playback devices. It ensures that your existing IP video sources—whether from an encoder, an Internet feed, or a local server—are perfectly compatible with all Smart TVs, Smartphones, and Tablets across your facility.
The TBS6311R is a premium 4K HDMI raw data video capture card featuring a single HDMI input. It supports uncompressed, real-time video capture at true DCI 4K resolution (up to 4096×2160p@60Hz). Additionally, its HDMI loop‑out port enables convenient real‑time monitoring of the input signal status.
TBS6311R 4K HDMI uncompressed video capture card delivers a flexible and cost-effective hardware solution for professional video workflows. With broad operating system support and compatibility with key software platforms like OBS, vMix, and Wirecast, it reliably supports video recording, live streaming, and production. This versatility makes it an excellent choice for applications ranging from live broadcasting and online conferences to medical, surveillance, and educational purposes.
TBS812X, the new Ultra HD Multi-Standard Trans-Modulator series is a versatile and comprehensive solution designed to meet diverse broadcasting needs. This product series includes three distinct models, each supports to output specific signal types.
1. TBS8122 DVB-C Trans-Modulator: Remux 12 HDMI source to MPTS and convert to DVB-C signals, output in 4 distinct frequencies through a single RF port.
2. TBS8123 DVB-T Trans-Modulator: Remux 12 HDMI video to MPTS and transform to DVB-T signals, also output in 4 frequencies through a single RF port.
3. TBS8124 ASI Trans-Modulator: Remux 12 HDMI source to MPTS and change to HDMI input video into DVB-ASI signals, outputting in a single frequency.
